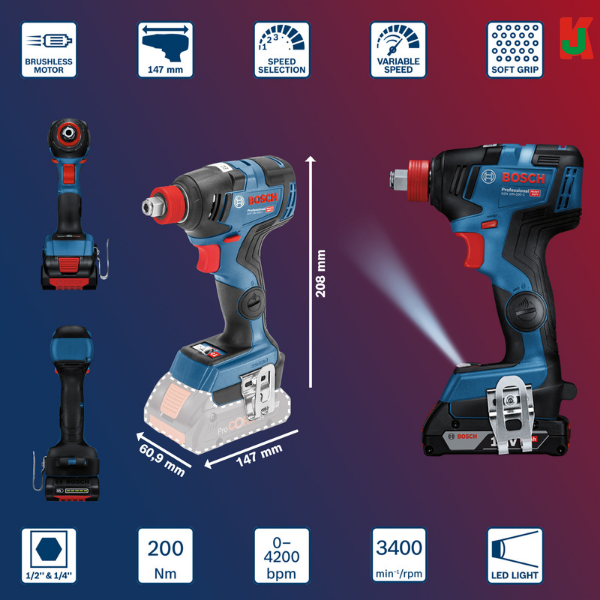

GDX 18V-200C
The most important data |
|
|---|---|
| No-load speed | 0-3,400 rpm |
| Weight excl. battery | 1.2 kg |
| Torque, max. | 200 Nm |
| Impact rate | 0-4,200 bpm |
| Battery voltage | 18 V |
| Tool holder | 1/4'' Hex Uni, 1/2'' Square |
| Breakaway torque, max. | 350 Nm |
Screw diameter |
|
|---|---|
| Screw diameter | M 6 – M 16 |
Total vibration values (Tightening screws and nuts of maximum permitted size) |
|
|---|---|
| Vibration emission value ah | 10 m/s² |
| Uncertainty K | 1.5 m/s² |
Technical data (GSB 18V-50)
| Additional data | |
|---|---|
| Battery voltage | 18 V |
| Torque (soft/hard/max.) | 28/50/50 Nm |
| Weight excl. battery | 1.1 kg |
| No-load speed (1st gear / 2nd gear) | 0 – 460 / 0 – 1,800 rpm |
| Chuck capacity, min./max. | 1.5 / 13 mm |
| Torque settings | 20+2 |
| Battery type | Lithium-ion |
| Max. impact rate | 27,000 bpm |
| Drilling diameter | |
|---|---|
| Max. drilling diameter in aluminium | 13 mm |
| Max. drilling diameter in wood | 35 mm |
| Max. drilling diameter in steel | 13 mm |
| Max. drilling diameter in masonry | 13 mm |
| Screw diameter | |
|---|---|
| Max. screw diameter | 10 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 2.1 m/s² |
| Uncertainty K | 1.5 m/s² |
SKU: 99711967
Categories: KJ POWERTOOLS
ADVANTAGES: (GDX-200C)
High power in compact size
Ready for all applications, thanks to 2 in 1 bit holder: ¼’’ internal hex and ½’’ square drive
Powerful use even in hard to reach areas thanks to best head length to torque ratio
Bluetooth Connectivity module for tool feedback, soft start and service information via mobile device
